MK630L Vertical CNC Roller Ring Special Grinding Machine

Roller ring grinding machine is used for coarse grinding, semi-fine grinding, fine grinding and non-spark grinding of the outer circle and R-pass groove of the tungsten carbide roller ring used in high-speed wire production. The machine adopts fully closed shell design, which effectively reduces processing noise, protects more safely, prevents water and gas diffusion in the processing area, and improves the processing environment.

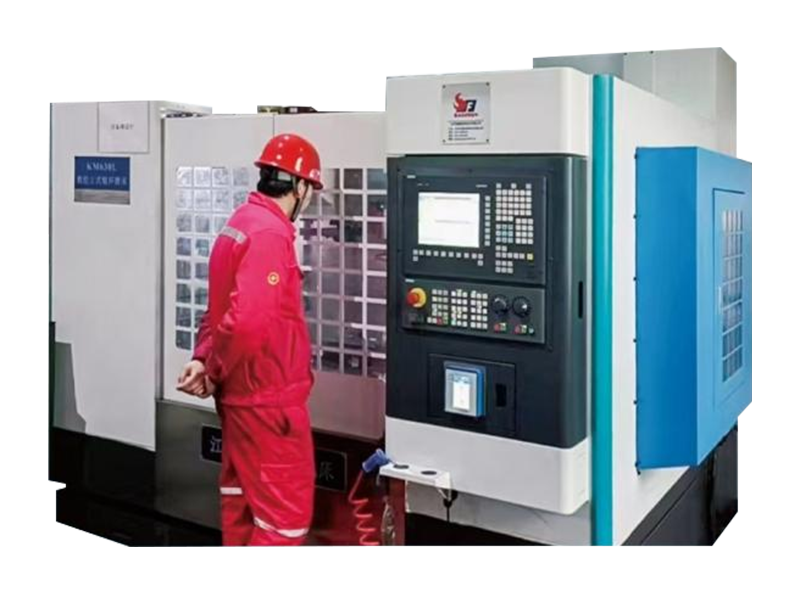

KM630L CNC roller ring special grinding machine is a special vertical roller ring grinding machine developed by our company in combination with the market demand for roller ring grinding machines. The grinding machine processing efficiency is 150% of the existing grinding machines in the market. The overall layout of the machine tool is a vertical main structure, using SIEMENS 828D three-axis linkage CNC system, designed a special vertical workpiece headstock, installation of horizontal two-axis mobile workbench, workbench moving guide rail adopts high rigidity sliding guide rail, is directly driven by AC servo motor preload ball screw to achieve, the workpiece adopts vertical installation, change the traditional horizontal roller ring grinding machine workpiece installation mode, greatly reduce the workpiece weight on the workpiece clamping precision The influence of degree;

Equipped with self-centering hydraulic special fixture to clamp the workpiece, instead of the traditional liquid fixture, the loading and unloading parts are more convenient and reliable, the vertical direction of the grinding shaft slide rail movement and the workpiece movement of the drive is the same, is directly driven by the AC servo motor, in order to improve the rigidity of the system, the ball screw withstand slight tension and the two ends are supported on the roller bearing. The position of the grinding shaft slide rail is equipped with a length grating ruler to achieve closed-loop control. The grinding wheel spindle bearing adopts imported high-rigidity precision bearings, and the grinding wheel spindle is driven by AC servo motor through the synchronous belt.

KM630L CNC vertical roller ring grinding machine design, reserve BT50 tool library interface, for the later automation, unmanned processing to provide convenience, CNC system after secondary development, with flexible free programming system, especially developed for professional roller ring manufacturers advanced software, making grinding programming based on human-machine interface dialogue possible. Just refer to the human-machine interface input roller ring parameters, you can process.
